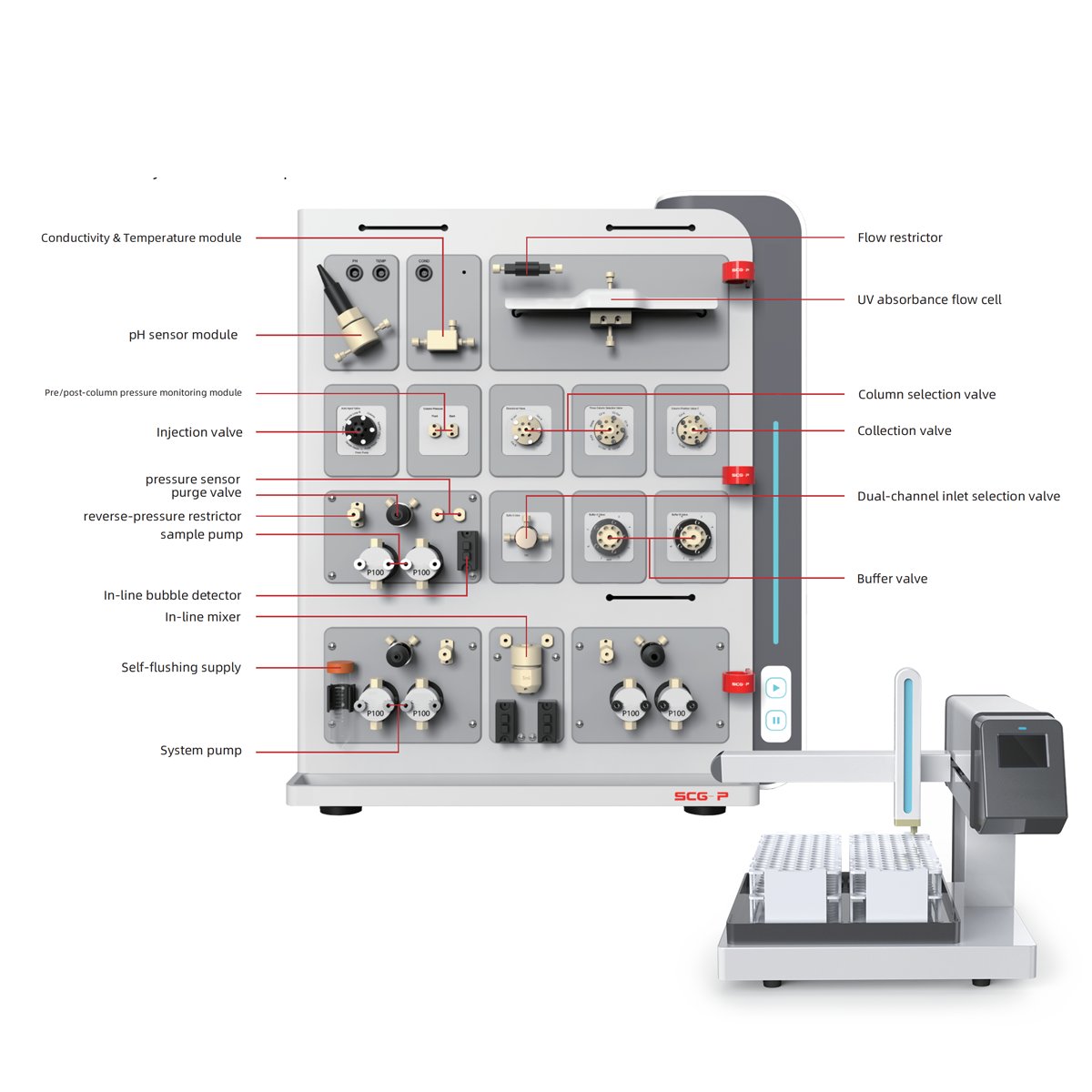

Model | SCG-P-300 |
System pump | Imported two duo plunger pump, bioinert PEEK material, provides stable while precise flow rates |
Flow rate range | 0.01-300 ml/min |
System pressure rate | 0-6.8 MPa（68bar, 1000psi） |
Mixer | 5ml in-line mixer |
Flow rate accuracy | ±2% |
Flow rate precision | RSD<0.5% |
Supported elution | Isocratic/ramp/step gradient, in-process modification available |
UV detector | Option1）Default 260 & 280 nm imported detector, detecting both channels simultaneously. Wavelengths customizable when ordering, including 2.0mm external circulation pool |
Option2）200 - 400 nm imported detector, detecting both channels simultaneously, including 2.0mm external flow cell |
Option3）200 - 400 nm imported detector, detecting four channels simultaneously, including 2.0mm external flow cell |
Option4）200 - 600 nm imported detector, detecting four channels simultaneously, including 2.0mm external circulation pool |
Option5）190 - 840 nm imported detector, detecting four channels simultaneously, including 2.0mm external circulation pool |
Wavelength precision/repeatability | ±1nm / ±0.5nm |
UV noise / drift | 0.16 mAu（1s）/ 1 mAu/h |
Conductivity sensor | 0.001-999.99 mS/cm, precision ±0.1 mS/cm or ±2% |
Temperature sensor | 0-100℃, precision±1℃, can compensate conductivity/pH result automatically |
pH sensor | 0 - 14, precision ±0.1 (2-12) |
In-line bubble detector | Control operation flow via detecting air bubbles in the pipeline |
Refractive index detector | Flow rate range: 1-50 ml/min, flow cell volume: 8 μL, assay range: 2.5- 5120 μRIU |
Multi-channel mobile phase selection module | A/B pumps available in 1 or 6 Buffer each |
Automatic sample injection valve | Software control, automatically injection while switching between Load/Inject/Waste mode |
Sample pump | 0.1 – 300 ml/min |
Sample selection valve | Supports 7 sample inlets, one buffer, biocompatible |
Column-position valve module | Option1)Column-position B valve:support for Column and ByPass functions Option2)Column-position C valve: support direct/reverse column and bypass flow path(Pressure resistance:2Mpa) Option3)3-column selection module:Support at most 3 columns in-line, controlled by software while support bypass.(Pressure resistance:250psi) |
Forward and reverse flush valves：3 column valves are required for forward and reverse flushing of the chromatography column. |
Pre/post column pressure monitoring module | Check the pre-and post-column pressure |
Collection valve | Six-channel bulk collection valve |
SCG Chromatography Workstation | Chromatography Workstation Software:in-house designed operation software |
Installation toolkit | PEEK / PTFE pipe, installation manual, user manual, pipe joints, column clip, Flow restrictor, precolumn filter, 1 ml quantitative loop, common tools, etc |
Solvent tray | The instrument come with a solvent tray on the top, access easy while saving space |
Column supports | Can hold 1ml, 5ml, ID: 10mm, 16mm, 26mm, 50mm columns |
Component Collector | FC-S2 component collector,including two racks. |
Small size, flexible collection methods, can place the same or different specifications of the collection bracket side by side, automatically identify the collection rack. |
13mm collection rack:1 x13mm test tube rack, 90 x 5ml test tubes |
16mm collection rack:1 x 16mm test tube rack, 60 x 15ml test tubes |
28mm collection rack:1 x 28mm test tube rack, 21 x 50ml test tubes |
96-well plate collection rack:1×96-well plate collection rack, containing four deep-well 96-well plates |
Wireless monitoring modules | Wireless mobile terminal monitoring module |
Sample contact material list | PEEK, Stainless Steel, PPS, PTFE |
AC input/ power rating | 220VAC/400W |
Instrument weight (gross weight) | 72kg |
Dimension (W*H*D) | 590mm*740mm*530mm |
